Basic steps to implement the Ken Burns Effect with SlideShowPro versions prior to 1.4.2
(For SlideShowPro 1.4.2 (and higher), click here for instructions.)

By Scott Knaub
Web Management Services
scott@web-mgt.com

Last Revision: October 11, 2006

This tutorial is based on the following assumptions:
- you have Adobe Flash 8 (or greater) installed on your computer.
- you know how to create a slide show using the SlideShowPro component in Flash 8
- you know how to open the ActionScript panel in Flash 8


1. Download the Movieclip Tweening Prototype extension from here:
http://laco.wz.cz/tween/?page=download

Here is a screen shot of a section of the download page at the time this tutorial was written:


Unzip this file to a directory on your computer.

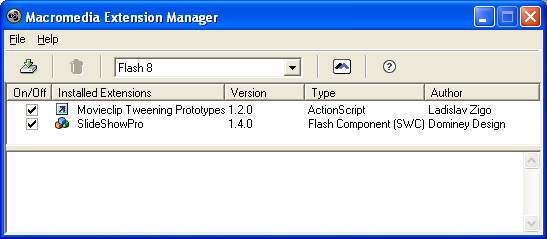

2. Open Extension Manager:



3. Install the Movieclip Tweening Prototype extension using Extension Manager:


4. Open your slide show .fla file in Flash 8.


5. Set the Instance Name for your SlideShowPro component to "my_ssp".


6. In the timeline, make a new layer above the layer that contains your SlideShowPro component and name it "actions". Here's how my timeline looks:



7. Click on Frame 1 of your "actions" layer and paste the following code into the Actions panel for that frame:
// This script was found at: http://www.slideshowpro.net/forums/viewtopic.php?id=919
// The original author's site is: http://www.kingofpunk.com
#include "lmc_tween.as"
import flash.display.BitmapData;
// taille de la photo d'origine
ORIGINSCALE = 100;
// redimensionnement maximum
DESTINATIONSCALE = 110;
// Durée totale du tweening
TWEENDURATION = my_ssp.imagePause + my_ssp.imageFade * 2;
// durée du fade
FADEDURATION = my_ssp.imagePause * 1000;
//
myListener = new Object ();
myListener.imageData = _imageData;
my_ssp.addEventListener ("imageData", myListener);
//
function _imageData (eventObject)
{
    if (my_ssp.displayMode == 'Auto')
    {
        kenBurnsEffect ();
    }
}
//
function kenBurnsEffect ()
{
    loader1 = _root.my_ssp.sspro_mc.cont_mc.loader1_mc;
    loader2 = _root.my_ssp.sspro_mc.cont_mc.loader2_mc;
    //
    if (my_ssp.thisLoader == loader1)
    {
        bitmapize (loader1);
        with (loader1)
        {
            _xscale = ORIGINSCALE;
            _yscale = ORIGINSCALE;
            tween (['_xscale', '_yscale'], [DESTINATIONSCALE, DESTINATIONSCALE], TWEENDURATION, 'linear');
        }
    }
    else if (my_ssp.thisLoader == loader2)
    {
        bitmapize (loader2);
        with (loader2)
        {
            _xscale = DESTINATIONSCALE;
            _yscale = DESTINATIONSCALE;
            tween (['_xscale', '_yscale'], [ORIGINSCALE, ORIGINSCALE], TWEENDURATION, 'linear');
        }
    }
}
//
function bitmapize (imgContainer)
{
    myBitmap = new BitmapData (imgContainer._width, imgContainer._height, true, 0x00FFFFFF);
    myBitmap.draw (imgContainer);
    imgContainer.attachBitmap (myBitmap, 1, "auto", true);
}



8. In Publish Settings, on the Flash tab make sure the options are set as shown:



9. Save your changes.


10. Publish your movie.

When you view the movie, you should now see the Ken Burns Effect.
